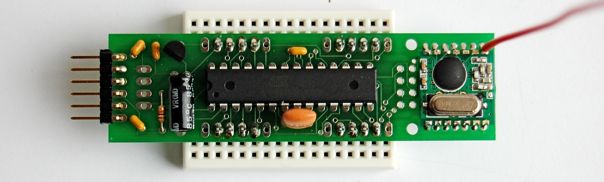

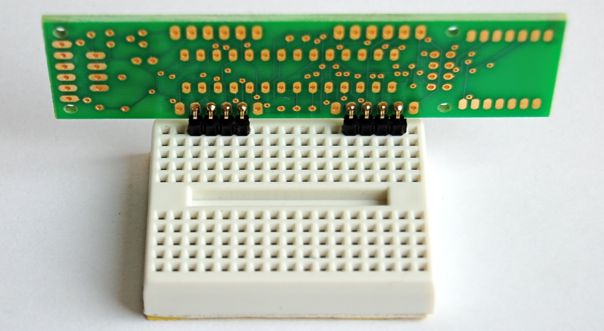

The JeeNode can be used with breadboards in different ways. The smallest configuration is a mini-breadboard, allowing one wire per pin (or 2, just…):

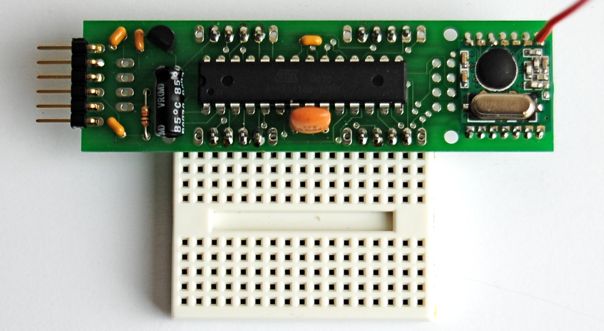

To get more connections on each pin, use this:

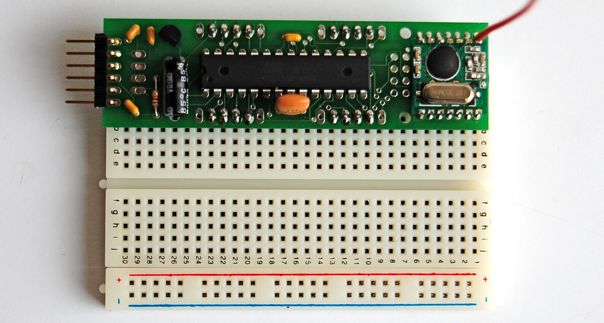

Or a bigger breadboard:

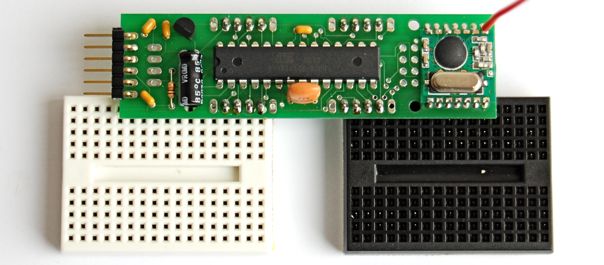

Or use one breadboard per port:

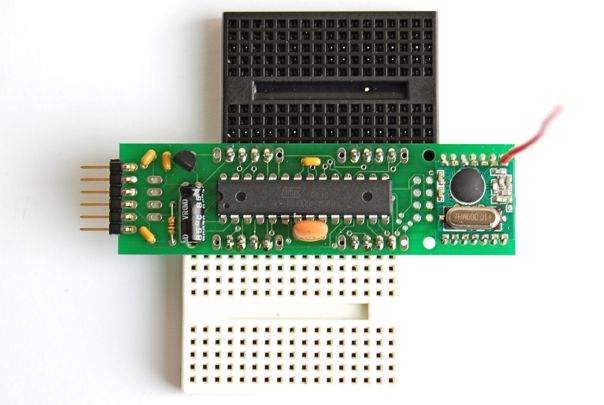

You could also set things up vertically:

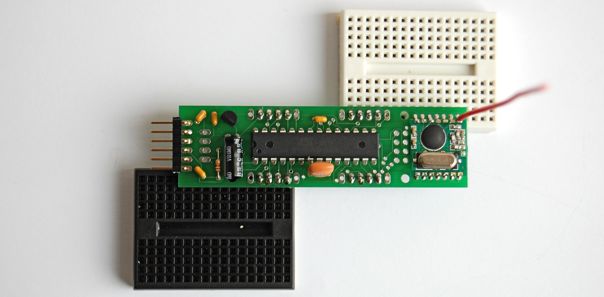

The rotated layout lets you switch between diagonally opposite ports, here are ports 1 and 4:
The black and white boards can be swapped without having to redo any wiring:

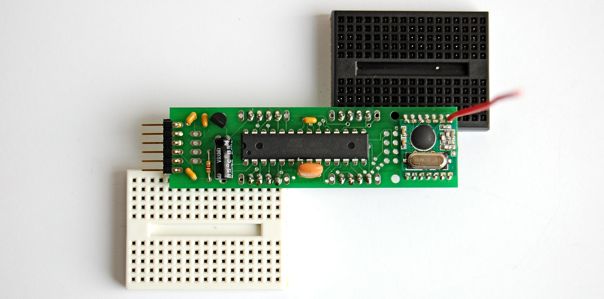

You can also flip entire sides:

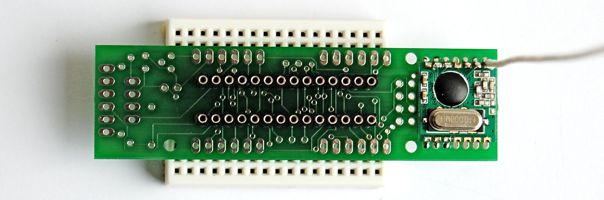

And finally there’s the option of using wire-wrap pins as IC socket to get access to all of the ATmega’s pins:
Although that hardly qualifies as a JeeNode anymore…
