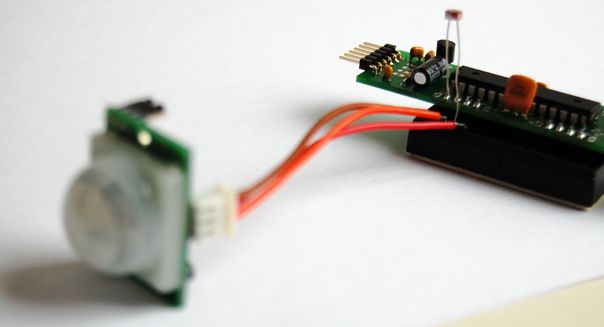

This is an example of hooking up two simple sensors to a single JeeNode port:

Two simple sensors

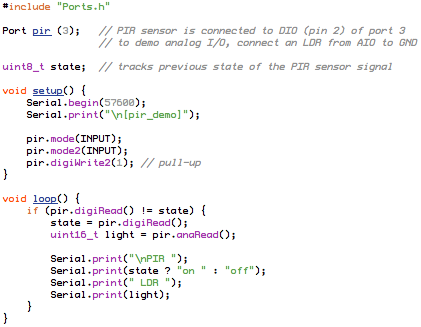

The Passive-IR (PIR) sensor by Parallax is on the DIO pin of port 3 (with ground and +3.3V also connected), and there is an LDR between the AIO pin and ground. Here’s sample code, as included with the Ports library:

Two simple sensors

Sample output:
