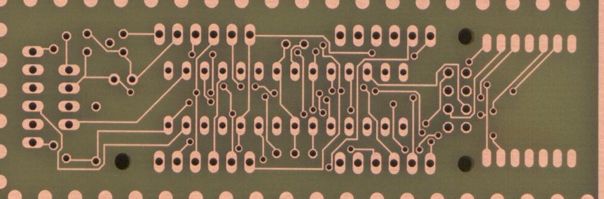

Whee, here’s a picture of my PCB:
Still in manufacturing, but it’s becoming very real now!

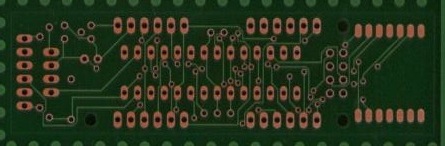

Update, Feb 6 – the solder mask has been applied:
