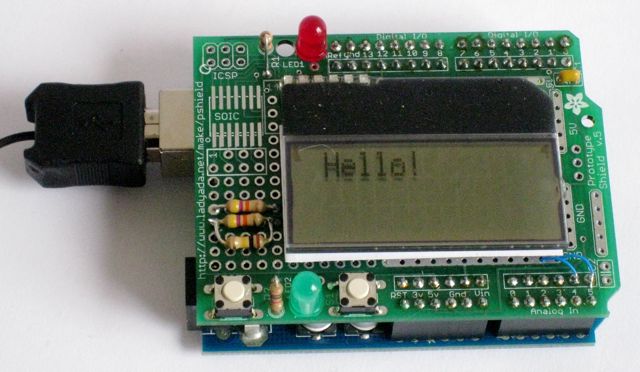

With two signal wires connected to the Arduino’s I2C (analog pins 4 and 5), this shield can now display text:
The characters are generated by the display chip, with a bit of tweaking to map ASCII code to its somewhat odd character code allocation.
